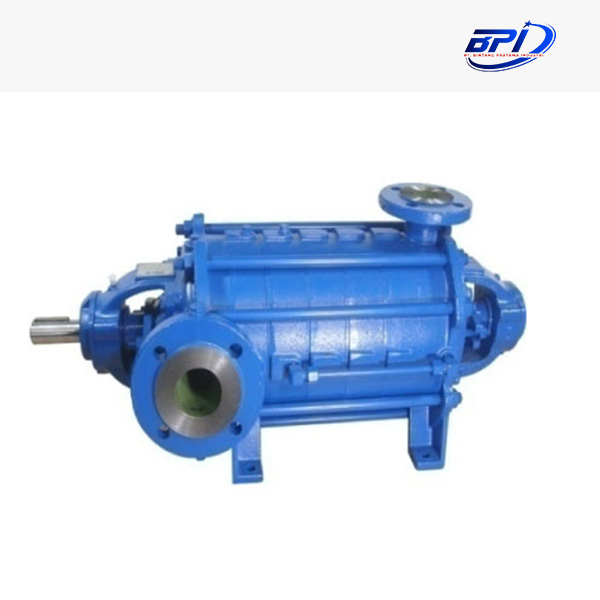

Speck pump

CAPACITY	MAX. 110 U.S.GPM ES 320, MAS 176 U.S GPM ES 400, MAX. 308 U.S GPM ES 500
TOTAL HEAD	MAX. 1312 FEET ES 320, MAS. 1312 FEET ES 400, MAX. 11312 FEET ES 500
SPEED	2900 RPM (50 CYCLES) 350 RPM, 60 CYCLES UPON REQUEST
PERFOMANCE	MEASURING MARGIN ACCORDING TO DIN 1944/111
CURVE TOLERANCE	CONSTRUCTIONAL MARGIN : Q, H + 5%, P + 10%
NOMINAL PRESSURE	580 PSI
TEMPERATURE	MAX. 120C (>120C UPON REQUEST)
SHAFT SEALING	GLAND PACKING MECHANICAL SEAL
SUCTION FLANGE	DIN EN 1092-2 PN16
DISCHARGE FLANGE	DIN EN 1092-2 PN40
